Rod End & Ball Joint

CF / CF..S

cf, cf s rod end

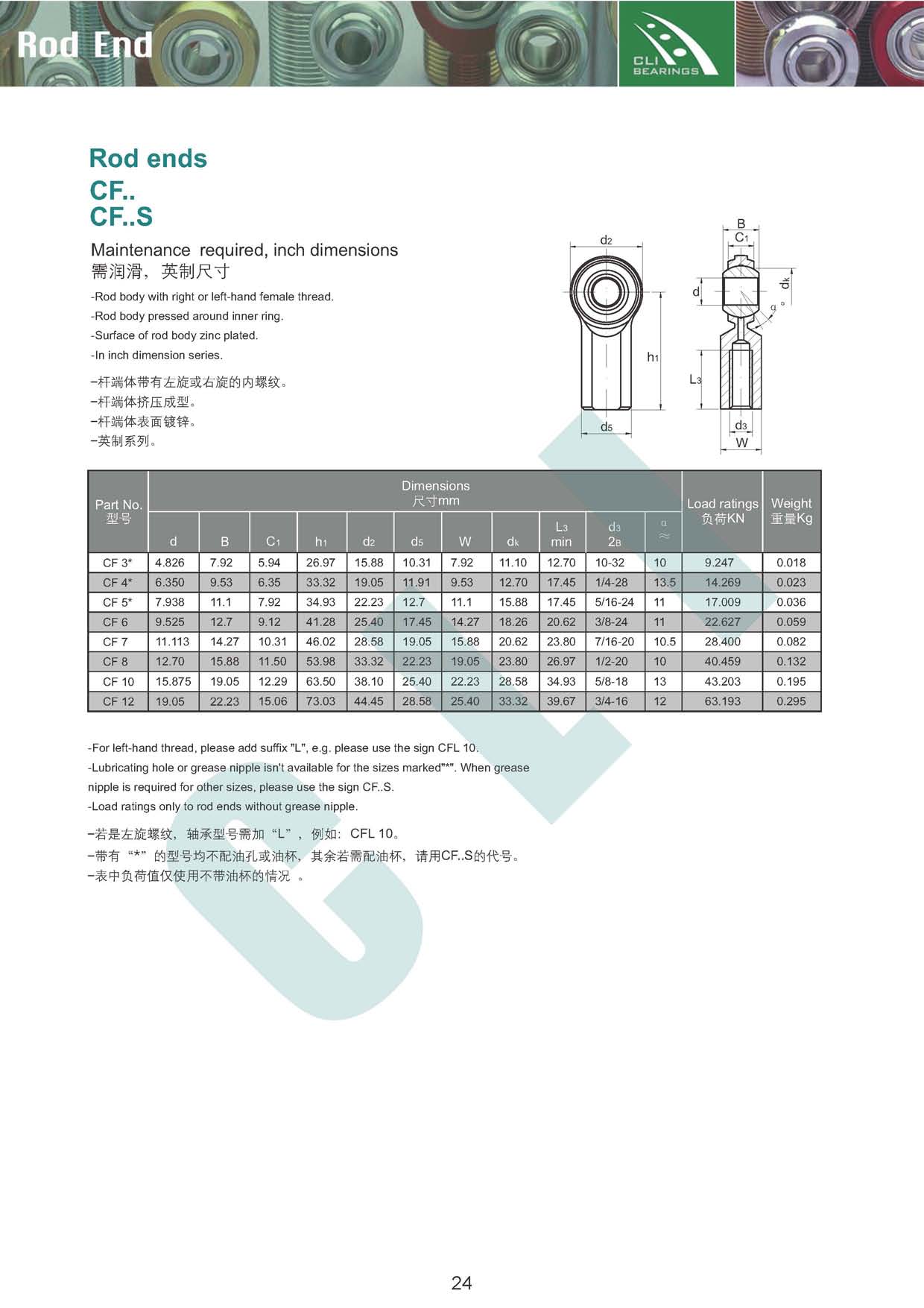

Rod ends CF.. CF..S
Maintenance required, inch dimensions 需润滑,英制尺寸
-Rod body with right or left-hand female thread.
-Rod body pressed around inner ring.
-Surface of rod body zinc plated.
-In inch dimension series.
-For left-hand thread, please add suffix "L", e.g. please use the sign CFL 10.
-Lubricating hole or grease nipple isn't available for the sizes marked"*". When grease nipple is required for other sizes, please use the sign CF..S.
-Load ratings only to rod ends without grease nipple.
