Bronze Wrapped Bearing

FB091 Bronze Bush + Graphites

Product Code: FB091 Wrapped Bronze Bearings, CuSn8P, Graphite in diamond oil pocket

Bronze FB091

FB091 bronze graphite bearings

● Descriptions


1. Material

Chemical Composition (%)

Type

CuSn8P

Cu = 91.3%  Sn = 8.5%  P =0.2%

Lead Free

CuPb10Sn10

Cu = Balance. Sn = 9~11%, Pb=9~11%

With Lead

2. With graphite in diamond oil pocket


3. Lead-free & Low-maintenance


● Features

1. CLI-FB091 is based on high density bronze alloy, and rolled with diamond pocket filled lubricant as it's inner surface.
2.  It has high capacity, high temperature, anti-corrosion and good wear.

● Possible Applications

Industrial: Widely used in construction machinery, agricultural machinery and so on.

Advantages

1. Lead-free and fully recyclable. Less expensive than machined bushing.
2. Minimal space required.
3. Lighter in weight than machined bushing or roller bearing.
4. High stability under load, therefore particularly suitable for oscillating bearing.
5. Lubrication grooves are coined into the metal, and any shape desired is possible.
6. Grease depots for long-term lubrication.

Flanged bushing offer the following additional advantages:

1. A single bushing and take both radial and axial forces.
2. A single bearing element is needed to replace both thrust washer and cylindrical bushing.
3. High stability.
4. No fixing of thrust washers.

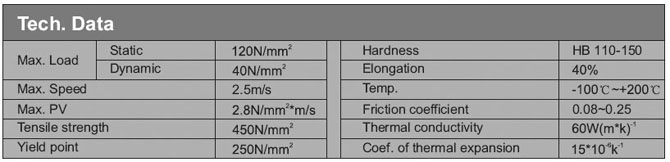

Physical and Mechanical Properties

Maximum Operating Temperature Tmax

280

°C



Minimum Operating Temperature Tmin

-200

°C

Maximum Static Load Psta,max

140

N/mm2

Maximum Dynamic Load Pdyn,max

140

N/mm2

Maximum Dry Sliding Speed V

2.5

m/s

Available Forms

 Bronze bush graphite

 Bronze bush graphite

 Bronze washer graphite

Bronze strip graphite

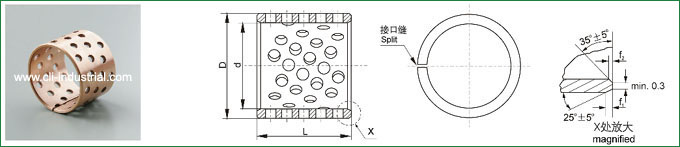

Cylindrical Bush

Flanged Bush

Thrust Washer

Plate


Download Catalogue: Bronze Bushing Wrapped:  FB090, FB091, FB092, FB093

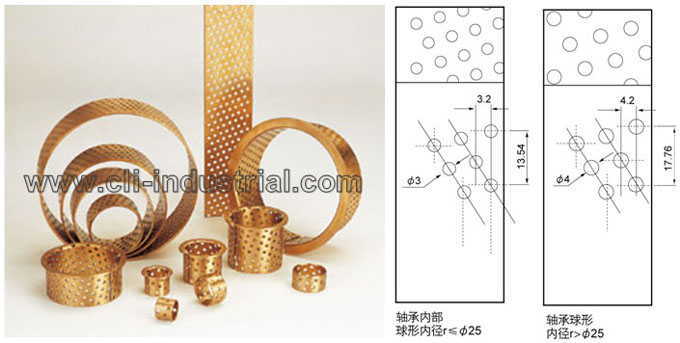

wrapped bronze bearing





















































wrapped bronze bearings,wrapped bronze bushings,diamond procket bushings,

GGB-SZ cylindricla bushes,
Structure: Bimetal Bearing with Steel Backing and Lead Free Bronze Overlay,
CHARACTERISTICS:
Lead-free bearing composition with indents as reservoir for the grease, also available without indents;
High load capacity,very good resistance to fatigue strength at high temperatures,Suited to harsh operating conditions;
Particularly suitable for high specific loads with oscillating motion and low frequency,Fine turned shafts suitable;
Bearing forms made to order:cylindrical bushes and sliding plates with non-standard dimensions, customized bearing designs

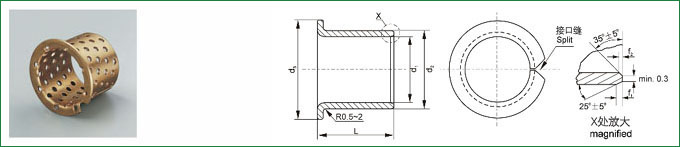

GGB MBZ-B09 FLANGED BUSHES
Strucutre:Bronze Bearings made of CuSn8 with Lubrication Indents​
CHARACTERISTICS:
Bearing material made of solid bronze strip with indents for lubrication;
Good wear resistance, suitable for rough conditions;
Optimum performance under relatively high loads and low speeds.
Bearing forms made to order: cylindrical bushes with non-standard dimensions, flanged bushes, sliding plates, customized bearing designs

GGB MBZ-B09 bearings, GGB SZ bearings,bronze graphite bearings,graphite filled bronze bearings,
