| Powder metallurgy (PM) is a forming and fabrication technique consisting of three major processing stages. First, the primary material is physically powdered, divided into many small individual particles. Next, the powder is injected into a mold or passed through a die to produce a weakly cohesive structure (via cold welding) very near the dimensions of the object ultimately to be manufactured. Pressures of 10-50 tons per square inch are commonly used. Also, to attain the same compression ratio across more complex pieces, it is often necessary to use lower punches as well as an upper punch. Finally, the end part is formed by applying pressure, high temperature, long setting times (during which self-welding occurs), or any combination thereof ... More >>> | Basic Materials | Chemical Composition (%) | Other Materials | | MPIF: FCTG - 3604 - K22 | Fe. 55 - 62
Cu: 34 - 38
C: 3 - 4
Other: 2.0 max | MPIF: FC-0200-K20 / MPIF: FC-0200-K34
MPIF: FC-1000-K20 / MPIF: FC-1000-K30 / MPIF: FC-1000-K40
MPIF: FC-2000-K25 / FC-2000-K30 / FC-2000-K40
MPIF: FC-0205-K20 / FC-0205-K35
MPIF: FC-0208-K25 / FC-0208-K40
MPIF: FCTG-3604-K16 / FCTG-3604-K22
MPIF: FCTG-3806-K14 / FCTG-3806-K22
MPIF: FZ-2170 / FZ-2175 | |
Standard Parts
Sintered Iron-Bronze Bearing / Bushing
|
■ Customerized Materials are welcomed and workable at our factory. Customer please offer the chemical composition (%) for the target material.
|

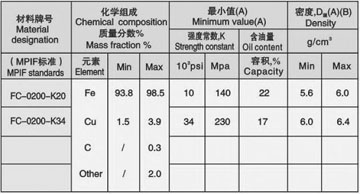

| ■ Based on iron and copper with improved strength, hardness and favorable abrasion resistance;
■ Self lubricating under high temperature;
■ This alloy can be used for products combining structure and features of bearing. |
----------------------------------------------------------------------------------------------------------------------------------------
Standard Parts
Sintered Iron-Bronze Bearing / Bushing
|
■ Customerized Materials are welcomed and workable at our factory. Customer please offer the chemical composition (%) for the target material.
|

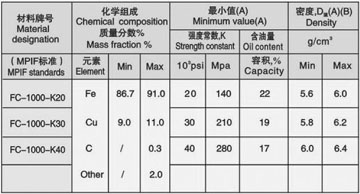

| ■ Based on iron and copper with increased copper content to prove better abrasion resistance and smooth rotation;
■ Less rotation noise compared with iron base. |
----------------------------------------------------------------------------------------------------------------------------------------
Standard Parts
Sintered Iron-Bronze Bearing / Bushing
|
■ Customerized Materials are welcomed and workable at our factory. Customer please offer the chemical composition (%) for the target material.
|

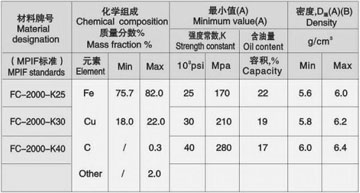

| ■ Based on iron and copper (20%);
■ The alloy is harder and of higher strength than bronze, as well as better oscillating load ability. |
----------------------------------------------------------------------------------------------------------------------------------------
Standard Parts
Sintered Iron-Bronze Bearing / Bushing
|
■ Customerized Materials are welcomed and workable at our factory. Customer please offer the chemical composition (%) for the target material.
|

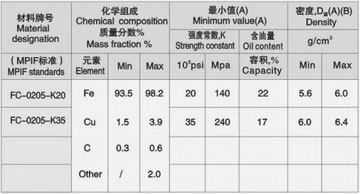

| ■ Based on iron and copper;
■The participation of carbon helps enhance the abrasion resistance and compression strength of the iron/copper alloy. |
----------------------------------------------------------------------------------------------------------------------------------------
Standard Parts
Sintered Iron-Bronze Bearing / Bushing
|
■ Customerized Materials are welcomed and workable at our factory. Customer please offer the chemical composition (%) for the target material.
|

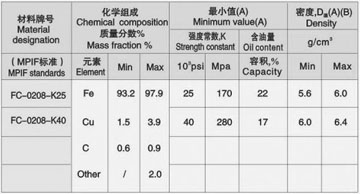

| ■ Based on iron and copper with increased carbon content;
■ Mechanical property can be improved through thermal processing. |
----------------------------------------------------------------------------------------------------------------------------------------
Standard Parts
Sintered Iron-Bronze Bearing / Bushing
|
■ Customerized Materials are welcomed and workable at our factory. Customer please offer the chemical composition (%) for the target material.
|

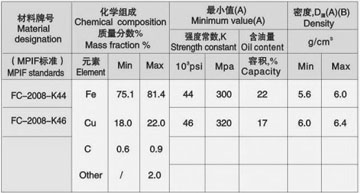

| ■ The iron, copper & carbon alloy proves excellent mechanical property.
■ Poor stability due to great heat exposure variety during manufacturing, but excels in strength. |
----------------------------------------------------------------------------------------------------------------------------------------
Standard Parts
Sintered Iron-Bronze Bearing / Bushing
|
■ Customerized Materials are welcomed and workable at our factory. Customer please offer the chemical composition (%) for the target material.
|
| ■ This is most ordinary iron, copper & carbon alloy;
■ Favorable abrasion resistance, compression strength and mechanical property;
■ Wildly applied to industrial machinery. |
----------------------------------------------------------------------------------------------------------------------------------------
Standard Parts
Sintered Iron-Bronze Bearing / Bushing
|
* Customerized Materials are welcomed and workable at our factory. Customer please offer the chemical composition (%) for the target material.
|

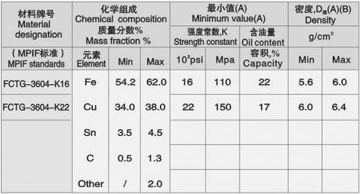

| 1. The alloy base of iron, copper and tin has improved strength and abrasion resistance.
2. Resembling bronze bearings in excellent mechanical property. |
----------------------------------------------------------------------------------------------------------------------------------------
Standard Parts
Sintered Iron-Bronze Bearing / Bushing
|
* Customerized Materials are welcomed and workable at our factory. Customer please offer the chemical composition (%) for the target material.
|
■ The alloy base of iron, copper and tin;
■ Provides similar property as bronze: low-cost, favorable mechanical property |
----------------------------------------------------------------------------------------------------------------------------------------
Standard Parts
Sintered Iron-Bronze Bearing / Bushing
| ■ Customerized Materials are welcomed and workable at our factory. Customer please offer the chemical composition (%) for the target material.
|

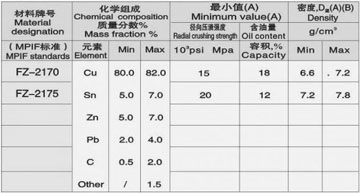

| ■ Based on copper with the participation of tin, zinc and lead to obtain better self-lubricating Abrasion resistance and low friction;
■ Harmful to environment; Usage limited. |
