#500SP Solid Lubricats Bearings

JFB650 Oilless Flanged Bushes

Standard Parts

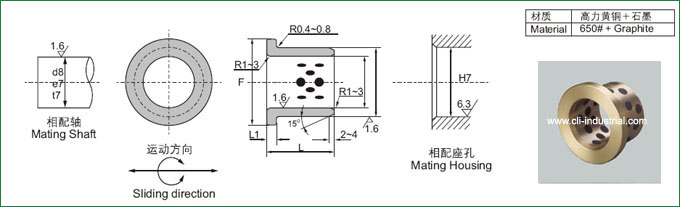

JFB650 Oilless Flanged Bushes (All dimensions in MM)

JFB650 Oilless Flanged Bushes

d

D

IDE7

ODr6

F

L1
-0.10

L

-0.10

-0.30

15

20

25

30

35

40

50

60

80

100

10

14

10

+0.040
+0.025

14

+0.034 +0.023

22

2

1015

1020



12

18

12

+0.050
+0.028

18

25



1215

1220



13

19

13

19



26



1315

1320



14

20

14

20

27

3

1415

1420



15

21

15

21

28



1515

1520

1525

1530



16

22

16

22

29



1615

1620

1625

1630



20

30

20

+0.061
+0.040

30

40



2015

2020

2025

2030



2040



25

35

25

35

+0.050
+0.034

45



2515

2520

2525

2530



2540



30

40

30

40

50



3020

3025

3030

3035

3040

3050



31.5

40

31.5

+0.075
+0.050

40



3120



3135



35

45

35

45

60

5



3520



3530



3540

3550



40

50

40

50

65



4020



4030



4040

4050



45

55

45

55

+0.060
+0.041

70



4530



4540

4550

4560



50

60

50

60

75



5030



5040

5050

5060



55

65

55

+0.090
+0.060

65

80



5540



5560



60

75

60

75

+0.062
+0.043

90



6040

6050



6080



63

75

63

75

85



6367



70

85

70

85

+0.073
+0.051

105



7050



7080



75

90

75

90

110



7560



80

100

80

100

120



8060

8080

80100

90

110

90

+0.107
+0.072

110

+0.076
+0.054

130



9060

9080



100

120

100

120

150



10080

100100

120

140

120

140

+0.088
+0.063

170



12080

120100

Metal Materials

JDB650 material is made of strong cast bronze based metal with special solid lubricants embedded. It basic material is CuZn24Al6. The base metal withstands high load and the solid lubricants provide for self-lubrication. The bearing shows excellent performance without pre-lubrication under conditions of extreme high/lower temperature with low speed. This material provides a maintenance-free bearing solution, particularly for high load, intermittent of oscillating motion.

For special heavy load application, CLI also can supply the strong cast bronze of special high hardness. The material can be up to HB>270, HB>300.

CLI Standard

JDB650

JDB650S1

JDB650S2

JDB650S3

JDB650S5

HGB250

Description

Strong cast bronze

Copper alloy

Copper alloy

Copper alloy

Special strong cast bronze

Cast Iron

Cu%

65

65

85

80

88



Sn%



5



12



Pb%



5



Zn%

25

25

5



Ni%



5



Al%

6

6



10



Fe%



5



Mn%

4

4



Density  g/cm³

8.0

8.0

8.8

8.3

8.8

7.3

Hardness HB

> 210

> 180

> 70

> 150

> 80

> 160

Tensile strength   N/mm²

> 750

> 550

> 200

> 500

> 360

> 250

Elongation%

> 12

> 12

15

10

> 8



Coefficient of linear
expansion

1.9*10-5/°C

1.9*10-5/°C

1.8*10-5/°C

1.6*10-5/°C

1.8*10-5/°C

1.0*10-5/°C

Limit Temp.  °C

300

300

400

400

400

400

Max. Load   N/mm²

100

80

60

50

70

10

Max. Speed   m/min

15

15

10

20

10

15

Max. PV  N/mm²*m/min

200

200

200

200

200

40

400N/mm²

< 0.01

< 0.01

< 0.05

< 0.04

< 0.05

< 0.015

Metal Codes Matching Table

Chinese Code
CB1776-87

International Code

Applications

International
ISO1338

Japan Code
Jis

USA Code
ASTM(UNS)

Germany

DIN

CuZn25Al6FeMn3

CuZn25Al6FeMn3

H5102
CAC304

B30-92
C86300

DIN1709
G-CuZn25A2.0598

High-load、low-speed、general use

CuZn25Al6FeMn3

CuZn25Al6FeMn3

H3102
CAC304

B30-92
C86300

DIN1709
G-CuZn25A2.0598

Super high load、low-speed、high duty

CuAl10Fe3

CuAl10Fe3

H5114
CAC703

B30-92
95800

DIN1714
GB-CuAl10Nl/2.1096

Medium load、medium-speed、general use

CuSn5b5Zn5

QSn5-5-5

H5111
CAC406

B30-92
C83600

DIN1705
G-Cu5n5ZnPb/2.1096

Medium load、medium-speed

DB5675-85
HT250



Fe250

ASTM
ciass40



Low-load、low-speed

Solid Lubricants

Lubricant

Features

Typical application

SL1  Graphite + add

Excellent resistance against chemical
attacksandIowfriction.Templimit400℃

Suite for general machines and
under atmosphere

SL4  PTFE + MOS2 + CF

Lower in friction and good for water
lubrication,Temp.limit300℃

Ship, hydraulic turbine, gas turbine etc.

Feature


1.May work without oil for long perlod
2.Extremely high load capacity,good anti-wear and lower friction
3.Particularly appropriate for low speed and high load
4.Suitable for reciprocating,oscillation or Intermittent motion whereoil film is hard to be formed
5.Good chemical resistant and anti-corrosion characteristics
6.can be used in wide range of temperature from -40°c~+300°c

Application


This kind of bearing can be applied under dry, high temperature, high pressure, corrosive, water or other chemical environments when no oil can be introduced.
Now is widely be used in automotive products line, water engineering, dam gate, plastic industries, successive casting machines, steel rollers in metallurgy industry, mineral machines, ships, turbo generators, hydraulic turbines and injection molding machines...

 Cli bearing & bushing
