JCBS,JCBSP Oilless Cam Side Block| Standard Parts

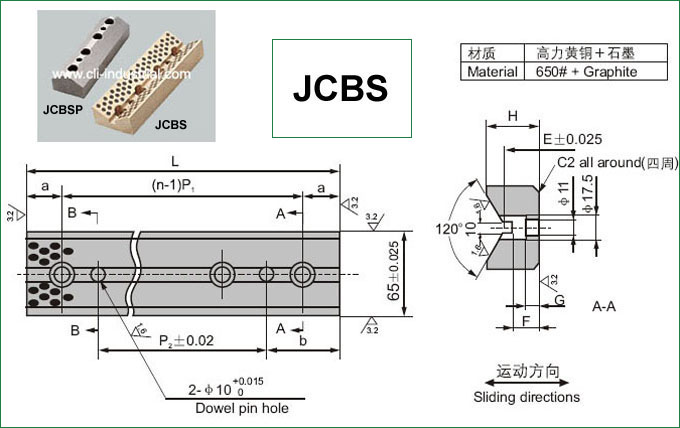

JCBS Oilless Cam Side Block (All dimensions in MM) |
| Standard No | L | H | E | F | G | a | p1 | Bolt
n | b | p2 | | JCBS-100 | 100 | 35 | 18 | 15 | 8 | 20 | 60 | 2 | 40 | 20 | | JCBS-150 | 150 | 25 | 50 | 3 | 50 | 50 | | JCBS-200 | 200 | 4 | 100 | | JCBS-250 | 250 | 5 | 150 | | JCBS | 300 | 6 | 200 | Standard Parts
JCBSP Oilless Cam Side Block (All dimensions in MM) |
| tandard No | L | H | E | G | a | P1 | Bolt
n | b | P2 | | JCBSP-100 | 100 | 47 | 44 | 20 | 20 | 60 | 2 | 40 | 20 | | JCBSP-150 | 150 | 25 | 50 | 3 | 50 | 50 | | JCBSP-200 | 200 | 4 | 100 | | JCBSP-250 | 250 | 5 | 150 | | JCBSP-300 | 300 | 6 | 200 |
