| ■ Product Code: FB090 Wrapped Bronze Bearings, CuSn8P, Diamond oil pocket |
| ● Descriptions |
|
| 1. Material | Chemical Composition (%) | Type |
| CuSn8P | Cu = 91.3% Sn = 8.5% P =0.2% | Lead Free |
| CuPb10Sn10 | Cu = Balance. Sn = 9~11%, Pb=9~11% | With Lead |

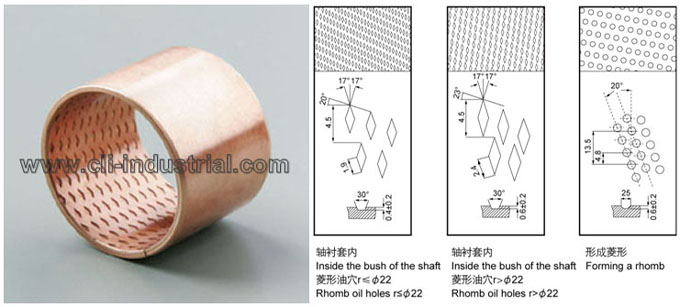

| 2. With diamond oil pocket |
|
| 3. Lead-free & Low-maintenance |
|
| ● Features |
| 1. CLI-FB090 is based on high density bronze alloy, and rolled with diamond pocket or round pocket as it's inner surface.
2. It has high capacity, high temperature, anti-corrosion and good wear.
3. CLI-FB090 is very similar to GGB MBZ-B09 and GGB-SZ material.
|
| ● Possible Applications |
| Industrial: Widely used in construction machinery, agricultural machinery and so on. |
| ■ Advantages |
| 1. Lead-free and fully recyclable. Less expensive than machined bushing.
2. Minimal space required.
3. Lighter in weight than machined bushing or roller bearing.
4. High stability under load, therefore particularly suitable for oscillating bearing.
5. Lubrication grooves are coined into the metal, and any shape desired is possible.
6. Grease depots for long-term lubrication. |

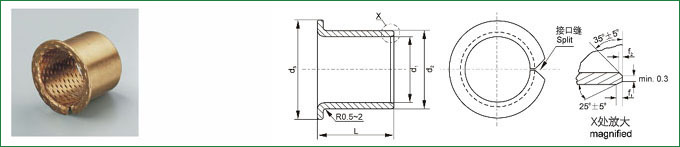

| Flanged bushing offer the following additional advantages: |
| 1. A single bushing and take both radial and axial forces.
2. A single bearing element is needed to replace both thrust washer and cylindrical bushing.
3. High stability.
4. No fixing of thrust washers. |

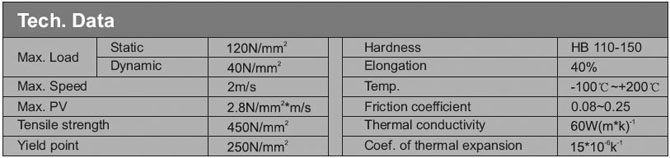

| ■ Physical and Mechanical Properties |
| Maximum Operating Temperature Tmax | 280 | °C | | Minimum Operating Temperature Tmin | -200 | °C | | Maximum Static Load Psta,max | 140 | N/mm2 | | Maximum Dynamic Load Pdyn,max | 140 | N/mm2 | | Maximum Dry Sliding Speed V | 2.5 | m/s | |

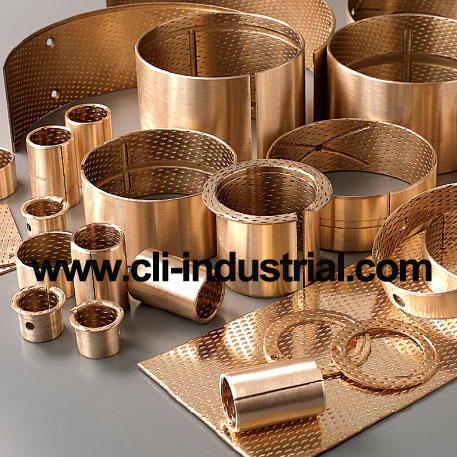

| ■ Available Forms |

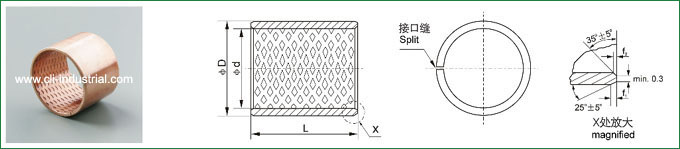

|  |  |  |  | | Cylindrical Bush | Flanged Bush | Thrust Washer | Plate | |
| ■Download Catalogue: Bronze Bushing Wrapped: FB090, FB091, FB092, FB093 |
wrapped bronze bearings,wrapped bronze bushings,diamond procket bushings,
GGB-SZ cylindricla bushes,
Structure: Bimetal Bearing with Steel Backing and Lead Free Bronze Overlay,
CHARACTERISTICS:
Lead-free bearing composition with indents as reservoir for the grease, also available without indents;
High load capacity,very good resistance to fatigue strength at high temperatures,Suited to harsh operating conditions;
Particularly suitable for high specific loads with oscillating motion and low frequency,Fine turned shafts suitable;
Bearing forms made to order:cylindrical bushes and sliding plates with non-standard dimensions, customized bearing designs
GGB MBZ-B09 FLANGED BUSHES
Strucutre:Bronze Bearings made of CuSn8 with Lubrication Indents
CHARACTERISTICS:
Bearing material made of solid bronze strip with indents for lubrication;
Good wear resistance, suitable for rough conditions;
Optimum performance under relatively high loads and low speeds.
Bearing forms made to order: cylindrical bushes with non-standard dimensions, flanged bushes, sliding plates, customized bearing designs
GGB MBZ-B09 bearings, GGB SZ bearings
1010MBZ 1215MBZ 1415MBZ 1420MBZ 1515MBZ 1525MBZ 1615MBZ 1620MBZ 1625MBZ 1815MBZ 1820MBZ 1825MBZ 2015MBZ 2020MBZ 2025MBZ 2030MBZ 2215MBZ 2230MBZ 2515MBZ 2525MBZ 2530MBZ 2830MBZ 3020MBZ 3030MBZ 3040MBZ 3220MBZ 3230MBZ 3240MBZ 3520MBZ 3530MBZ 3540MBZ 4020MBZ 4030MBZ 4040MBZ 4050MBZ 4530MBZ 4550MBZ 5030MBZ 5040MBZ 5060MBZ 5540MBZ 5560MBZ 6030MBZ 6040MBZ 6060MBZ 6540MBZ 7040MBZ 7080MBZ 7580MBZ 8040MBZ 8080MBZ 9040MBZ 9090MBZ 10050MBZ 10095MBZ |
