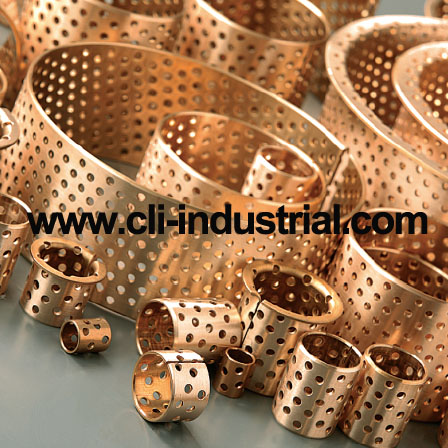

Bronze Wrapped Bearing

FB092 (LD)

Product Code: FB092 Wrapped Bronze Bearings, CuSn8P, Holes

Bronze bush FB092

GGB LD bearings bronze

● Descriptions


1. Material

Chemical Composition (%)

Type

CuSn8P

Cu = 91.3%  Sn = 8.5%  P =0.2%

Lead Free

CuPb10Sn10

Cu = Balance. Sn = 9~11%, Pb=9~11%

With Lead

2. With holes


3. Lead-free & Low-maintenance


● Features

1. CLI-FB092 is based on high density bronze alloy, and rolled with through holes, which distributed on its surface with certain angle
2. It has high capacity, high temperature, anti-corrosion and good wear.
3. CLI-FB092 is very similar to GGB LB material

● Possible Applications

Industrial: Widely used in construction machinery, agricultural machinery and so on.

Advantages

1. Lead-free and fully recyclable. Less expensive than machined bushing.
2. Minimal space required.
3. Lighter in weight than machined bushing or roller bearing.
4. High stability under load, therefore particularly suitable for oscillating bearing.
5. Lubrication grooves are coined into the metal, and any shape desired is possible.
6. Grease depots for long-term lubrication.

Flanged bushing offer the following additional advantages:

1. A single bushing and take both radial and axial forces.
2. A single bearing element is needed to replace both thrust washer and cylindrical bushing.
3. High stability.
4. No fixing of thrust washers.

Physical and Mechanical Properties

Maximum Operating Temperature Tmax

280

°C



Minimum Operating Temperature Tmin

-200

°C

Maximum Static Load Psta,max

140

N/mm2

Maximum Dynamic Load Pdyn,max

140

N/mm2

Maximum Dry Sliding Speed V

2.5

m/s

Available Forms

 bronze bush

 bronze bush

 bronze washer

 bronze strip

Cylindrical Bush

Flanged Bush

Thrust Washer

Plate


Download Catalogue: Bronze Bushing Wrapped:  FB090, FB091, FB092, FB093


wrapped bronze bearing


















































wrapped bronze bearings,wrapped bronze bushings,diamond procket bushings,

GGB LD CYLINDRICAL BUSHES
STRUCTURE:Bronze Bearings made of CuSn8 with Grease Reservoirs​
CHARACTERISTICS:
Wear resistant bearing made of solid bronze strip with perforation for lubricated applications,
Improved performance compared with MBZ-B09: larger grease reservoirs increase maintenance intervals, dirt and debris swept into perforations, thereby reducing wear,
Optimum performance under relatively high loads and low speeds,
Bearing forms made to order: cylindrical bushes with non-standard dimensions, customized bearing designs


 GGB LB Bearings, GGB LB strips, GGB LB plates, GGB LB flanged busings
