Sintered Bearings (Oil Impregnaged)

Sintered Iron Bearing

Powder metallurgy (PM) is a forming and fabrication technique consisting of three major processing stages. First, the primary material is physically powdered, divided into many small individual particles. Next, the powder is injected into a mold or passed through a die to produce a weakly cohesive structure (via cold welding) very near the dimensions of the object ultimately to be manufactured. Pressures of 10-50 tons per square inch are commonly used. Also, to attain the same compression ratio across more complex pieces, it is often necessary to use lower punches as well as an upper punch. Finally, the end part is formed by applying pressure, high temperature, long setting times (during which self-welding occurs), or any combination thereof ... More >>>

Iron Materils

Basic Materials

Chemical  Composition (%)

Other Materials


SAE863 Type3

SATM B439-70 GR4

Mil-B-5687C Type
CompB



Cu: 18.0~22.0,
Fe: Rest
Particles: 2.0


MPIF: F - 0000 - K23 / ASTM: B 439 - 83 / DIN: SINT - B00
MPIF: F - 0008 - K32 / ASTM: B 439 - 83 / DIN: SINT - B11
MPIF: FG - 0303 - K16

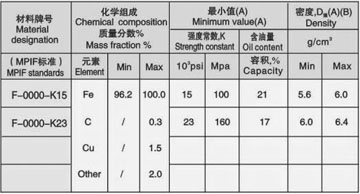

MPIF: F - 0000 - K15 / K23

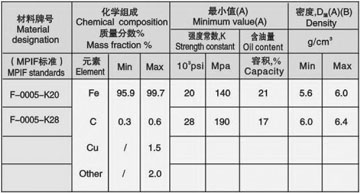

MPIF: F - 0005-K20 / F - 0005-K28

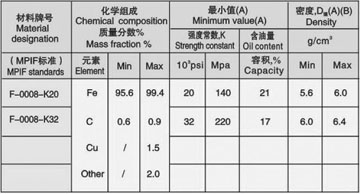

MPIF: F - 0008 - K20 /F - 0008 - K32



Standard Parts
Sintered Iron Cylindrical Bushing

Iron Cylinrical Bushings

Please Click Here to Check Bushing Size

Dimension & Tolerance

d = inside diameter        ToleranceG7
D = outside diameter     Tolerance
s7
L = Length                        Tolerance
js13

Descriptions

1.Based on iron and carbon;
2.Harder than bronze, higher strength than pure iron,  abrasion resistant;
3.Applicable to medium loading conditions.

Materials & Features

Standard Parts
Sintered Iron Flanged Bushing


Iron Flanged Bushes

Please Click Here to Check Bushing Size

Dimension & Tolerance

d =inside diameter         ToleranceG7
D = outside diameter     Tolerance
s7
L = Length                        Tolerance
js13
D1=Flange diameter       Tolerancejs13
T = Thickness                  Tolerancejs13

Descriptions

1. Based on pure iron;
2.Economic products of low cost;
3.Applicable to medium loading conditions.

Materials & Features

Standard Parts
Sintered Iron Spherical Bushing


Iron Spherical Bushings

Please Click Here to Check Bushing Size

Descriptions

1.Based on copper and tin;
2.Excellent performance in corrosion resistance, self lubricating; abrasion resistance, frictional resistance and low noise etc;
3.Applicable to  micro motors, computers, office equipments...

Materials & Features

Standard Parts
Sintered Iron Spherical Bushing with Collar


Iron Spherical Bushings with Collar

Please Click Here to Check Bushing Size

Descriptions

1.Based on copper and tin;
2.Excellent performance in corrosion resistance, self lubricating; abrasion resistance, frictional resistance and low noise etc;
3.Applicable to  micro motors, computers, office equipments...

Materials & Features
