JESW Oilless Wear Plate

#500SP Solid Lubricats Bearings

JESW Oilless Wear Plate

Standard Part

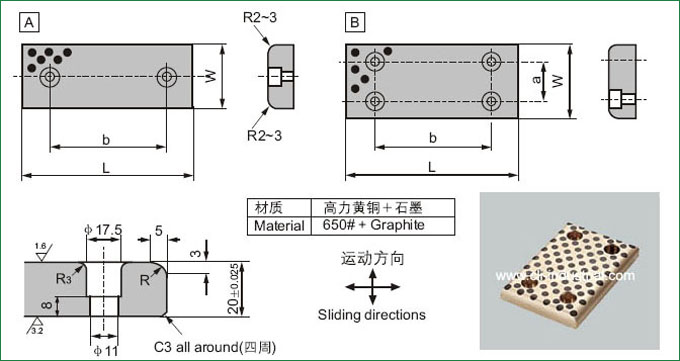

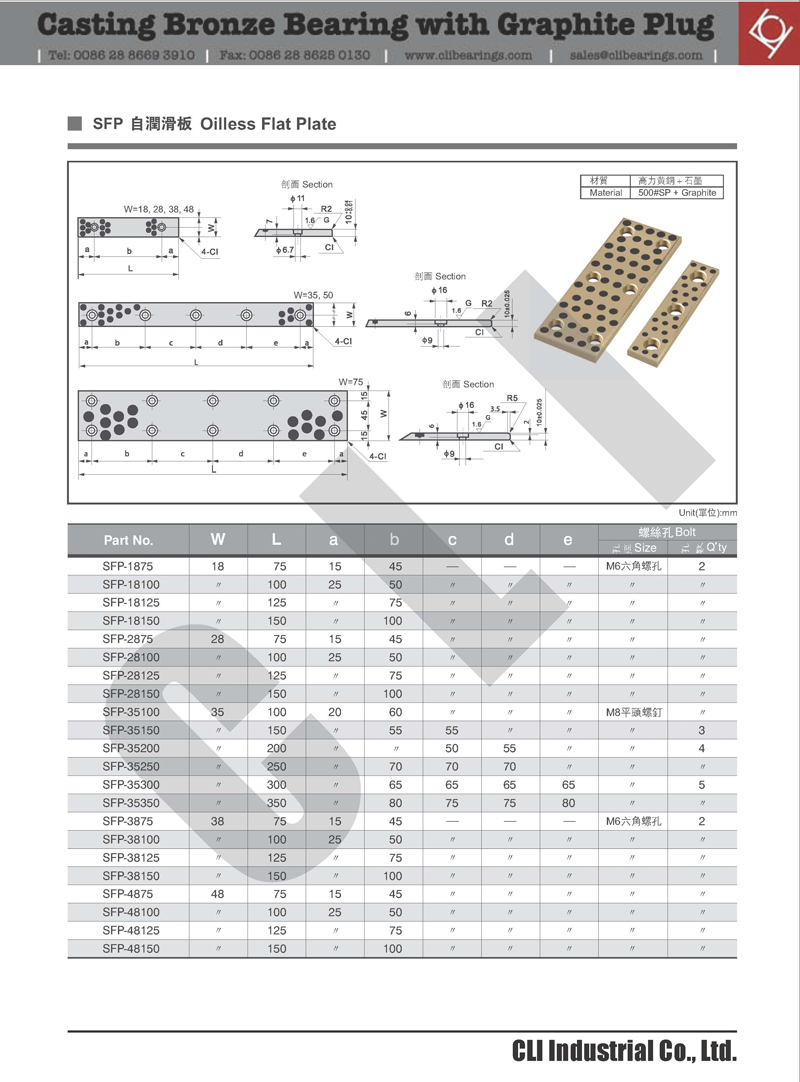

JESW Oilless Wear Plate (All dimensions in MM)

Standard No	W	L	a	b	Sketch
JESW-28*75	28	75	-		A
JESW-28*100		100
JESW-28*150		150
JESW-38*75	38	75	-
JESW-38*100		100
JESW-38*150		150
JESW-48*75	48	75	-
JESW-48*100		100
JESW-48*125		125
JESW-48*150		150
JESW-48*200		200
JESW-58*75	58	75	-
JESW-58*100		100
JESW-58*150		150
JESW-75*75	75	75	-
JESW-75*100		100
JESW-75*125		125
JESW-75*150		150
JESW-75*200		200
JESW-100*100	100	100	50		B
JESW-100*125		125
JESW-100*150		150
JESW-100*200		200
JESW-100*250		250
JESW-100*300		300
JESW-125*125	125	125	50
JESW-125*150		150
JESW-125*200		200
JESW-125*250		250
JESW-125*300		300
JESW-125*350		350
JESW-150*150	150	150	100
JESW-150*200		200
JESW-150*250		250

Metal Materials

JDB650 material is made of strong cast bronze based metal with special solid lubricants embedded. It basic material is CuZn24Al6. The base metal withstands high load and the solid lubricants provide for self-lubrication. The bearing shows excellent performance without pre-lubrication under conditions of extreme high/lower temperature with low speed. This material provides a maintenance-free bearing solution, particularly for high load, intermittent of oscillating motion.

For special heavy load application, CLI also can supply the strong cast bronze of special high hardness. The material can be up to HB>270, HB>300.

CLI Standard	JDB650	JDB650S1	JDB650S2	JDB650S3	JDB650S5	HGB250
Description	Strong cast bronze	Copper alloy	Copper alloy	Copper alloy	Special strong cast bronze	Cast Iron
Cu%	65	65	85	80	88
Sn%			5		12
Pb%			5
Zn%	25	25	5
Ni%				5
Al%	6	6		10
Fe%				5
Mn%	4	4
Density g/cm³	8.0	8.0	8.8	8.3	8.8	7.3
Hardness HB	> 210	> 180	> 70	> 150	> 80	> 160
Tensile strength N/mm²	> 750	> 550	> 200	> 500	> 360	> 250
Elongation%	> 12	> 12	15	10	> 8
Coefficient of linear expansion	*1.910^-5/°C**	*1.910^-5/°C**	*1.810^-5/°C**	*1.610^-5/°C**	*1.810^-5/°C**	*1.010^-5/°C**
Limit Temp. °C	300	300	400	400	400	400
Max. Load N/mm²	100	80	60	50	70	10
Max. Speed m/min	15	15	10	20	10	15
*Max. PV N/mm²m/min**	200	200	200	200	200	40
400N/mm²	< 0.01	< 0.01	< 0.05	< 0.04	< 0.05	< 0.015

Metal Codes Matching Table

Chinese Code CB1776-87	International Code				Applications
Chinese Code CB1776-87	International ISO1338	Japan Code Jis	USA Code ASTM(UNS)	Germany DIN	Applications
CuZn25Al6FeMn3	CuZn25Al6FeMn3	H5102 CAC304	B30-92 C86300	DIN1709 G-CuZn25A2.0598	High-load、low-speed、general use
CuZn25Al6FeMn3	CuZn25Al6FeMn3	H3102 CAC304	B30-92 C86300	DIN1709 G-CuZn25A2.0598	Super high load、low-speed、high duty
CuAl10Fe3	CuAl10Fe3	H5114 CAC703	B30-92 95800	DIN1714 GB-CuAl10Nl/2.1096	Medium load、medium-speed、general use
CuSn5b5Zn5	QSn5-5-5	H5111 CAC406	B30-92 C83600	DIN1705 G-Cu5n5ZnPb/2.1096	Medium load、medium-speed
DB5675-85 HT250		Fe250	ASTM ciass40		Low-load、low-speed

Solid Lubricants

Lubricant	Features	Typical application
SL1 Graphite + add	Excellent resistance against chemical attacksandIowfriction.Templimit400℃	Suite for general machines and under atmosphere
SL4 PTFE + MOS2 + CF	Lower in friction and good for water lubrication,Temp.limit300℃	Ship, hydraulic turbine, gas turbine etc.

Feature

1.May work without oil for long perlod
2.Extremely high load capacity,good anti-wear and lower friction
3.Particularly appropriate for low speed and high load
4.Suitable for reciprocating,oscillation or Intermittent motion whereoil film is hard to be formed
5.Good chemical resistant and anti-corrosion characteristics
6.can be used in wide range of temperature from -40°c~+300°c

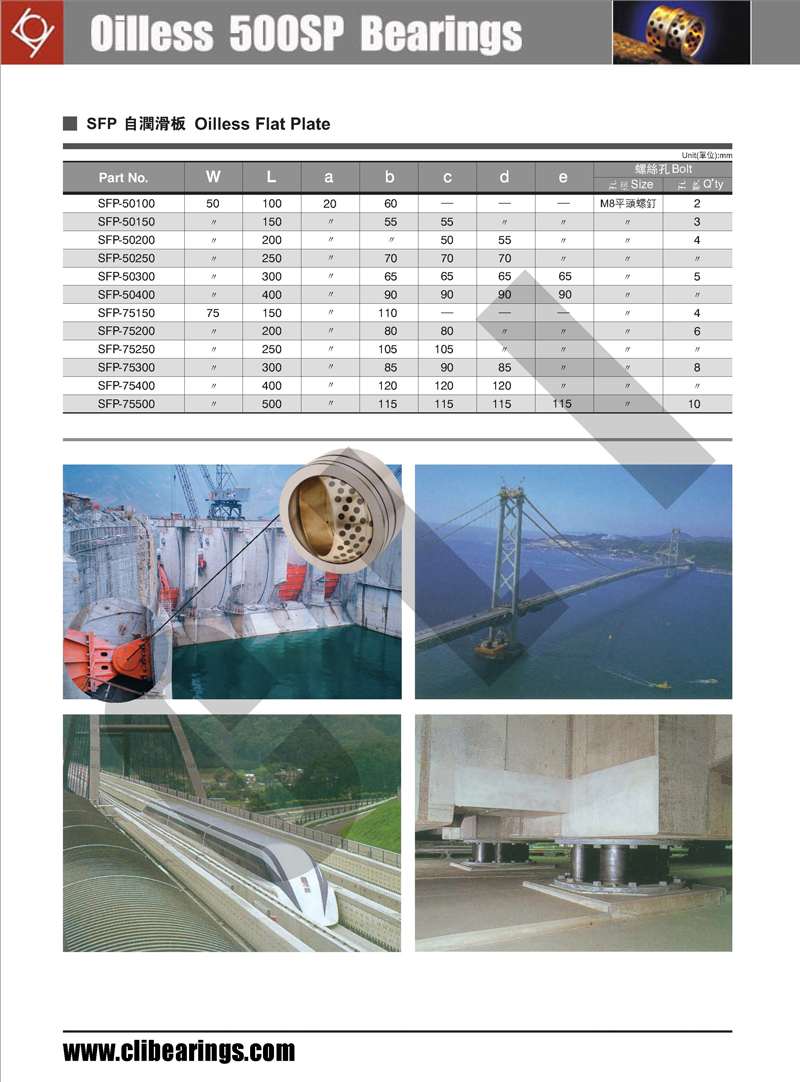

Application

This kind of bearing can be applied under dry, high temperature, high pressure, corrosive, water or other chemical environments when no oil can be introduced.
Now is widely be used in automotive products line, water engineering, dam gate, plastic industries, successive casting machines, steel rollers in metallurgy industry, mineral machines, ships, turbo generators, hydraulic turbines and injection molding machines...
