Metal Polymer Dry Bearings

CLI04-B


CLI04B
Dry Bearings, Steel backing, Bronze powder, PTFE and polymer fibres


dp4b bush



 Metal-polymer-composite material

 Steel + porous bronze sinter + PTFE / Polymer Fibres

 Self-lubricating & Maintenance-free

 Features


1. Suitable for dry running, low coefficient of friction, lower wear, good sliding characteristics, the transfer film created can protect the mating metal surfaces, suitable for rotating and oscillating movement, high chemical resistance, low absorption of water and swelling.

2. CLI04B material improved the friction and much good wear resistance over the common CLIDU bearing range under lubricated operation.

 Physical & Mechanical Properties



Items

Value

Unit

Maximum Operating Temperature Tmax

280

°C

Minimum Operating Temperature Tmin

-200

°C

Maximum Static Load Psta,max

250

N/mm2

Maximum Dynamic Load Pdyn,max

140

N/mm2

Maximum Sliding Speed V-dry

2.5

m/s

Maximum Sliding Speed V-oil lubricated

5

m/s

Maximum PV Factor-dry

1

N/mm2 * m/s

Maximum PV Factor-oil lubricated

10

N/mm2 * m/s

Coefficient of friction f-dry

0.04-0.25



Coefficient of friction f-oil lubricated

0.02-0.08





 Usage Range



dry

good

oil lubricated

very good

grease lubricated

good

water lubricated

fair

process fluid lubricated

good



 Possible Application


CLI04B is developed for high duty, oil lubricated, hydraulic applications...Automotive suspension struts, shock absorbers guide bushing, hydraulic cylinders, gear pumps, motors, axial and radial piston pumps & motors.

CLI04B is designed mainly for using under lubricated conditions and it performs excellent wear resistance and low static/dynamic friction coefficient.

 Standard Parts Available

Cylindrical Bush

Flanged Bush

Thrust Washer

Flanged Washer

Strip / Plate

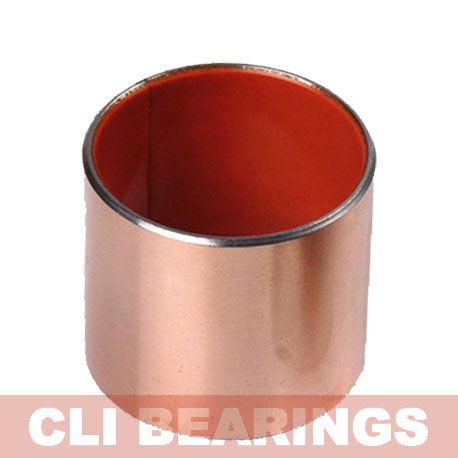

dp4b bush

  dp4b flanged bush

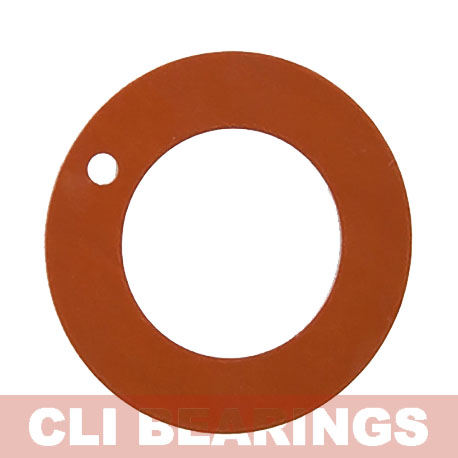

DP4B thrust washer

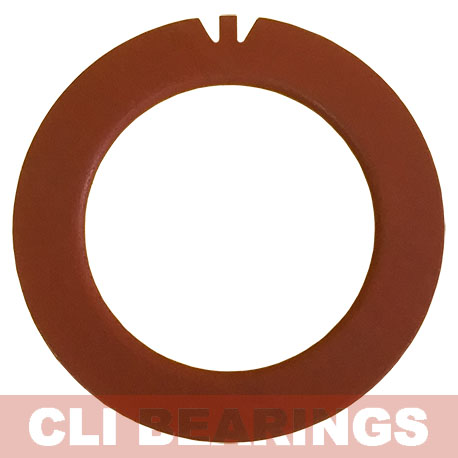

 DP4B flanged washer

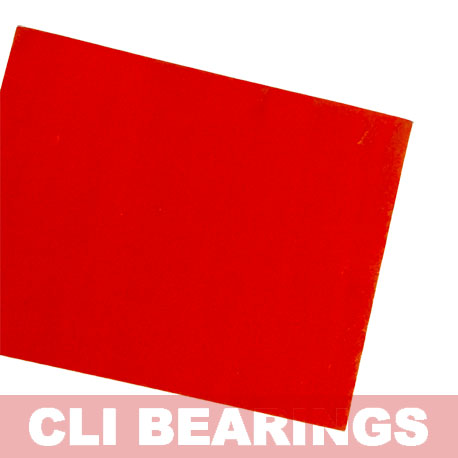

DP4B strip and DP4B plate

Metric

Inch

Metric

Inch

Metric

Inch

Metric

Inch

Metric

Inch


 Download Catalogue CLI04B Bushing / CLI04-B Bearing


Metal Polymer Dry Bearings

















self lubricating bearing

self lubricated bearing

self lubrication bearing

PTFE bush

PTFE bushing

PTFE bearing

teflon bush

teflon bushing

dry bearing

dry bush

dry bushing

du bearing

du bush

du bushing

du washer

du thrust washer

du strip

du plate

PAB..PP

PABO..PP

composite dry bearing

composite sliding bearing

composite bearing

composite dry sliding bushing

composite washer

composite thrust washer

TEF-MET

TEF-MET/B

gear pump bearing

gear pump bush

gear pump bushing

shock absorber bearing

shock absorber bush

shock absorber bushing

door hinge bearing

door hinge bush

door hinge bushing



MLE bearing

  dp4-b sleeve bushings,
dp4-b bearings,
dp4-b flanged bushings,
dp4-b flanged bearings,
 dp4-b thrust washers,
dp4-b flanged washers,
dp4-b plates,
dp4-b strips,
  dp4b sleeve bushings,
dp4b bearings,
dp4b flanged bushings,
dp4b flanged bearings,
 dp4b thrust washers,
dp4b flanged washers,
dp4b plates,
dp4b strips,



Cylindrical DP4B Bearings --- Metric Size (MM)


1215DP4B  1220DP4B  1225DP4B  1310DP4B  1320DP4B  1405DP4B  1410DP4B  1412DP4B  1415DP4B  1420DP4B  1425DP4B  1510DP4B  1512DP4B  1515DP4B  1520DP4B  1525DP4B  1610DP4B  1612DP4B  1615DP4B  1620DP4B  1625DP4B  1720DP4B  1810DP4B  1815DP4B  1820DP4B  1825DP4B  2010DP4B  2015DP4B  2020DP4B  2025DP4B  2030DP4B  2215DP4B  2220DP4B  2225DP4B  2230DP4B  2415DP4B  2420DP4B  2425DP4B  2430DP4B  2515DP4B  2520DP4B  2525DP4B  2530DP4B  2550DP4B  2815DP4B  2820DP4B  2825DP4B  3010DP4B  3015DP4B  3020DP4B  3025DP4B  3030DP4B  3040DP4B  3220DP4B  3230DP4B  3240DP4B  3520DP4B  3530DP4B  3535DP4B  3540DP4B  3550DP4B  3720DP4B  4020DP4B  4030DP4B  4040DP4B  4050DP4B  4520DP4B  4530DP4B  4540DP4B  4545DP4B  4550DP4B  5020DP4B  5030DP4B  5040DP4B  5050DP4B  5060DP4B  5520DP4B  5525DP4B  5530DP4B  5540DP4B  5550DP4B  5555DP4B  5560DP4B  6020DP4B  6030DP4B  6040DP4B  6050DP4B  6060DP4B  6070DP4B  6530DP4B  6550DP4B  6570DP4B  7040DP4B  7070DP4B  7560DP4B  7580DP4B  8040DP4B  8060DP4B  8080DP4B  80100DP4B  8530DP4B  8560DP4B  85100DP4B  9060DP4B  90100DP4B  9560DP4B  95100DP4B  10050DP4B  10060DP4B  100115DP4B


Cylindrical DP4B Bearings --- Inch Size (INCH)



02DP4B02  02DP4B03  025DP4B025  025DP4B04  03DP4B03  03DP4B04  03DP4B06  04DP4B04  04DP4B06  05DP4B06  05DP4B08  06DP4B03  06DP4B04  06DP4B06  06DP4B08  06DP4B10   06DP4B12  07DP4B08  07DP4B12  08DP4B04  08DP4B06  08DP4B08  08DP4B10  08DP4B12  08DP4B14  09DP4B06  09DP4B08  09DP4B10  09DP4B12  10DP4B04  10DP4B08  10DP4B12  10DP4B14  10DP4B16  11DP4B14  12DP4B04  12DP4B06  12DP4B08  12DP4B10  12DP4B12  12DP4B16  14DP4B04  14DP4B06  14DP4B12  14DP4B14  14DP4B16  14DP4B20  16DP4B06  16DP4B08  16DP4B12  16DP4B16  16DP4B20  16DP4B24  18DP4B06  18DP4B10  18DP4B12  18DP4B16  20DP4B06  20DP4B12  20DP4B14  20DP4B16  20DP4B20  20DP4B28  22DP4B12  22DP4B16  22DP4B24  22DP4B28  24DP4B08  24DP4B16  24DP4B18  24DP4B20  24DP4B24  24DP4B32  26DP4B16  26DP4B16  26DP4B24  28DP4B28  28DP4B32  30DP4B12  30DP4B16  30DP4B30  30DP4B36  32DP4B08  32DP4B16  32DP4B24  32DP4B28  32DP4B32  32DP4B40  34DP4B08  34DP4B12  34DP4B16  34DP4B24  34DP4B28  34DP4B32  34DP4B48  34DP4B64  36DP4B28  36DP4B32  36DP4B36  36DP4B40  36DP4B48  36DP4B56  36DP4B60  36DP4B64  36DP4B72  40DP4B16  40DP4B26  40DP4B32  40DP4B40  40DP4B48  40DP4B56  40DP4B60  40DP4B64  40DP4B72  40DP4B76  44DP4B32  44DP4B36  44DP4B40  44DP4B48  44DP4B56  44DP4B60  44DP4B72  44DP4B76  44DP4B80  48DP4B32  48DP4B36  48DP4B40  48DP4B48  48DP4B56  48DP4B60  48DP4B64  48DP4B72  48DP4B76  48DP4B80  52DP4B32  52DP4B38  52DP4B40  52DP4B48  52DP4B56  52DP4B60  52DP4B64  52DP4B72  52DP4B76  52DP4B80  56DP4B32  56DP4B38  56DP4B40  56DP4B48  56DP4B56  56DP4B60  56DP4B64  56DP4B72  56DP4B76  56DP4B80  58DP4B32  58DP4B36  58DP4B40  58DP4B48  58DP4B56  58DP4B60  58DP4B64  58DP4B72

Flanged DP4B Bearings --- Metric Size (MM)

BB0304DP4B  BB0404DP4B  BB0505DP4B  BB0604DP4B  BB0608DP4B  BB0806DP4B  BB0808DP4B  BB0810DP4B  BB1007DP4B  BB1009DP4B  BB1012DP4B  BB1017DP4B  BB1207DP4B  BB1209DP4B  BB1212DP4B  BB1217DP4B  BB1412DP4B  BB1417DP4B  BB1509DP4B  BB1512DP4B   BB1517DP4B  BB1612DP4B  BB1617DP4B  BB1812DP4B  BB1817DP4B  BB1822DP4B  BB2012DP4B  BB2017DP4B  BB2022DP4B  BB2512DP4B  BB2522DP4B  BB3016DP4B  BB3026DP4B  BB3516DP4B  BB3526DP4B  BB4016DP4B  BB4026DP4B  BB4516DP4B  BB4526DP4B

Flanged DP4B Bearings --- Inch Size (INCH)

06FDP4B04  06FDP4B06  06FDP4B08  06FDP4B12  08FDP4B04  08FDP4B06  08FDP4B08  08FDP4B12  10FDP4B06  10FDP4B08  10FDP4B10   10FDP4B12  12FDP4B06  12FDP4B08  12FDP4B12  12FDP4B16  14FDP4B08  14FDP4B12  14FDP4B16  14FDP4B20  16FDP4B08  16FDP4B12  16FDP4B16  16FDP4B20  20FDP4B16  20FDP4B20  20FDP4B24  24FDP4B16  24FDP4B24  24FDP4B32



DP4B Thrust Washer --- Metric Size (MM)
WC08DP4B  WC10DP4B  WC12DP4B  WC14DP4B  WC16DP4B  WC18DP4B  WC20DP4B  WC22DP4B  WC24DP4B  WC25DP4B  WC30DP4B  WC35DP4B  WC40DP4B  WC45DP4B  WC50DP4B  WC60DP4B



DP4B Thrust Washer --- Inch Size (INCH)

DP4B06  DP4B07  DP4B08  DP4B09  DP4B10  DP4B11  DP4B12  DP4B14  DP4B16  DP4B18  DP4B20  DP4B22  DP4B24  DP4B26  DP4B28  DP4B30  DP4B32



DP4B Flanged Washer --- Metric Size (MM)

BS40DP4B  BS50DP4B  BS60DP4B  BS70DP4B  BS80DP4B  BS90DP4B  BS100DP4B



DP4B Plates / Strips --- Metric Size (MM)

S07190DP4B  S10190DP4B  S15240DP4B  S20240DP4B  S25240DP4B  S30240DP4B
