Sintered Bearings (Oil Impregnaged)

Sintered Bronze Bearing

Powder metallurgy (PM) is a forming and fabrication technique consisting of three major processing stages. First, the primary material is physically powdered, divided into many small individual particles. Next, the powder is injected into a mold or passed through a die to produce a weakly cohesive structure (via cold welding) very near the dimensions of the object ultimately to be manufactured. Pressures of 10-50 tons per square inch are commonly used. Also, to attain the same compression ratio across more complex pieces, it is often necessary to use lower punches as well as an upper punch. Finally, the end part is formed by applying pressure, high temperature, long setting times (during which self-welding occurs), or any combination thereof ...More>>>

Bronze Materils

Basic Materials

Chemical  Composition (%)

Other Materials


SAE841 ASTM B438-70 GR1 Type


DIN30910 PART3  SINT A50

Mil-B-5687C Type
CompA


Cu: 87.5~90.5,
Fe: 1.0max,
Sn:9.5~10.5,
P:1.75,
Praticles:0.5

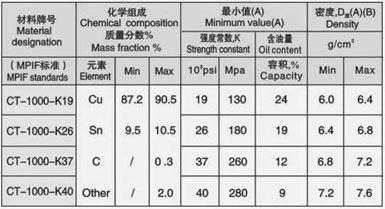

MPIF: CT- 1000 - K19 / ASTM: B 438 - 83a
MPIF: CT - 1000 - K26 / ASTM: B 438 - 83a / DIN: SINT - A50
MPIF: CT - 1000 - K37 / ASTM: B 438 - 83a / DIN: SINT - B50

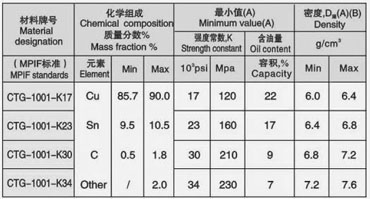

MPIF: CT - 1001 - K23 / ASTM: B 438 - 83a / DIN: SINT - B51
MPIF: CT - 1001 - K33 / ASTM: B 438 - 83a / DIN: SINT - C51

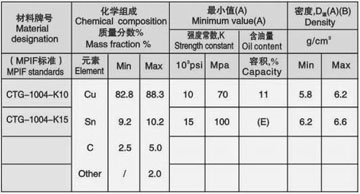

MPIF: CTG - 1004 - K10
MPIF: CTG - 1004 - K15


Standard Parts

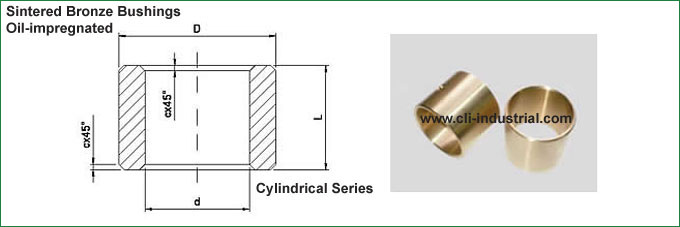

Sintered Bronze Cylindrical Bushing

Sintered Bronze Cylindrical Bushings

Please Click Here to Check Bushing Size

Dimension & Tolerance

d = inside diameter        ToleranceG7
D = outside diameter     Tolerance
s7
L = Length                        Tolerance
js13

Descriptions

1. Based on copper and tin;
2. Favorable ability in corrosion resistance, self lubricating, abrasion resistance and frictional resistance etc;
3. Applicable to industrial machinery like motor and auto & auto cycle etc. This product is greatly favored by the Ford Automobile

Materials & Features

Standard Parts

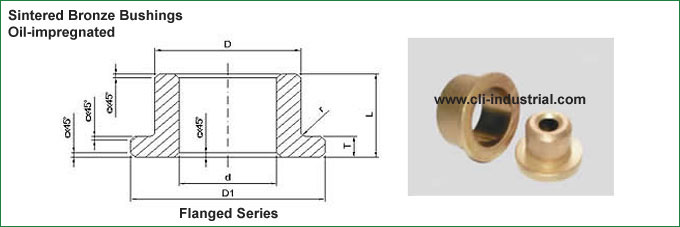

Sintered Bronze Flanged Bushing


Flanged Bushings

Please Click Here to Check Bushing Size

Dimension & Tolerance

d =inside diameter         ToleranceG7
D = outside diameter     Tolerance
s7
L = Length                        Tolerance
js13
D1=Flange diameter       Tolerancejs13
T = Thickness                  Tolerancejs13

Descriptions

1. Based on copper and tin;
2. Favorable ability in corrosion resistance, self lubricating, abrasion resistance and frictional resistance etc;
3. Applicable to industrial machinery like motor and auto & auto cycle etc. This product is greatly favored by the Ford Automobile

Materials & Features

Standard Parts
Sintered Bronze Spherical Bushing


Spherical Bushings

Please Click Here to Check Bushing Size

Descriptions

1.Based on copper and tin;
2.Excellent performance in corrosion resistance, self lubricating; abrasion resistance, frictional resistance and low noise etc;
3.Applicable to  micro motors, computers, office equipments...

Materials & Features

Standard Parts

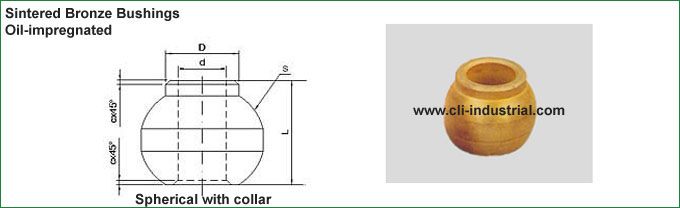

Sintered Bronze Spherical Bushing with Collar


Spherical Busing with Collar

Please Click Here to Check Bushing Size

Descriptions

1. It's made of bronze or iron powder, mold pressed in high pressure, sintered in high temperature and soaked in oil by vacuum;


2. It's used in domestic electric appliances, electric tools, textiles machinery, chemical machinery and automobile industry, etc.

Materials & Features
