Ball Retainer / Roller Guide Bearings

FZH / Copper Retainer

CLI040 FZh  Ball Retainer
Structure: Copper  Retainer + Steel Ball

FZH


This is copper based material, on which the rollers are arranged orderly in certain angle and intervals. Moreover, the retaining technique is improved that dropping of the rollers can be thoroughly prevented. The friction is low and can move freely both in redial and in axial directions, and the bearing is in high precision. This is a young generation of the roller bearing which can roll in high speed, and is used in rolling frane of cold impact moulds, high precision machine tools and their accessories.


The steel ball array is mainly divided into two categories: spiral array and straight line array.





Feature

1. Low Coef Friction
2. Long life span
3. High movement accuracy
4. Be Proper for straight line and spiral movement
5. Fast Movement

Application

CLI040 FZH Ball Retainer Bearing & Bush is a new generation replacement of guide pin bush. With high speed movement, this is mainly used in high precision punching tool, high precision machine tool, etc.

Technical Data

Max Load Capacity

2 30N/mm2

Shrink Fit

0.01mm~0.02mm

Max Sliding Speed

6m/s

Coef Friction

0.01~0.08μ

Rolling Diameter Deviation

<0.002mm

1.Duid Tube:

MATERIAL: GCR15 HARDNESS: HRC 62-66
MEASUREMENT: USING TRADITIONAL MEASUREMENT METHOD (O.D.MICROMETER CALIPER,
I.D. MICROMETER CALIPER) TO MEASURE HOUSING BORE Dh, SHAFT DIAMETER AND STEEL
BALL DIAMETER d , REQUESTING df+2d -Dh=0.01-0.02mm. 0 0

2. Shaft:

MATERIAL: GCr 15 HARDNESS: HRC 62-66 SHAFT DIAMETER
TOLERANCE: h5.

3. Steel Ball:

MATERIAL: GCr 15 HARDNESS: HRC 62-66 STEEL BALL
OUTSIDE DIAMETER TOLERANCE: +0.001/-0.001mm



Standard Products
CLI-042   FZH Ball Retainer (Metric Size in MM)

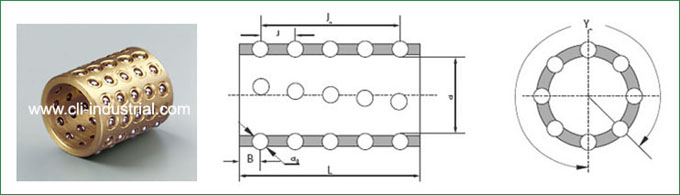

■ Spiral Array Ball Retainer                                                 Please Click Here to Check Bushing Dimensions

sa

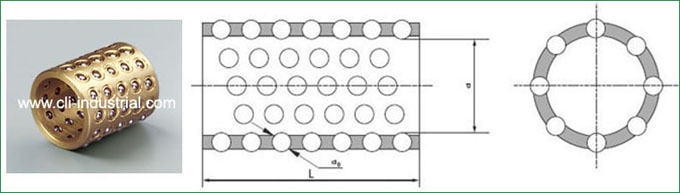

■ Straight Line Ball Retainer                                             Please Click Here to Check Bushing Dimensions

sb

Bearing Dimension
